Llave de vídeo (CIR1441S)

Category: Banco de circuitos

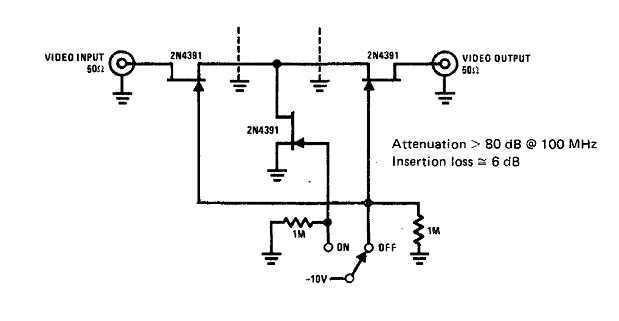

    Encontramos este circuito en el FET Databook de National Semiconductor de 1977. La señal tiene una atenuación de 80 dB a 100 MHz. FETs equivalentes pueden ser experimentados.
