Probador de transistores de puente (CIR20941S)

Written by: Newton C. Braga
Category: Banco de circuitos



Encontramos este circuito en la documentación de la década de 1950. El circuito se aplica básicamente a los transistores de germanio de la época, pero se puede usar para probar transistores modernos.

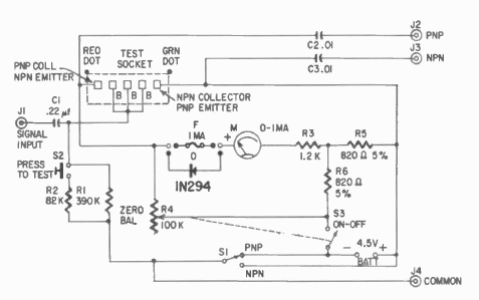

Probador de transistores de puente
