Generador de audio (CIR20938S)

Written by: Newton C. Braga
Category: Banco de circuitos

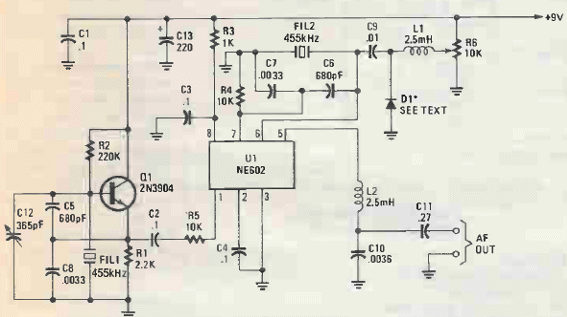

Este circuito es de uma Popular Electronics de 1992. El circuito emplea un transistor equivalente y un circuito integrado de la época. La frecuencia viene dada por el cristal.



Generador de audio
Generador de audio
