Interruptor estático con SCR (CIR20893S)

Written by: Newton C. Braga
Category: Banco de circuitos

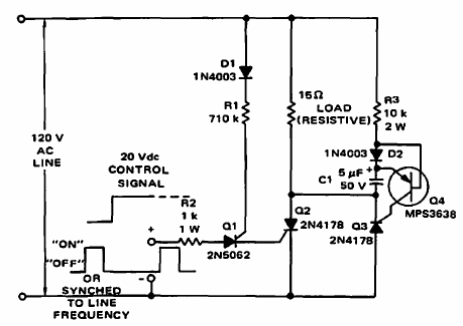

Encontrado en un manual de Motorola de la década de 1960, este circuito muestra cómo usar un transistor en un interruptor estático con SCR. Q2 y Q3 deben estar de acuerdo con la carga controlada.
