Control de potencia con triac (CIR20815S)

Written by: Newton C. Braga
Category: Banco de circuitos

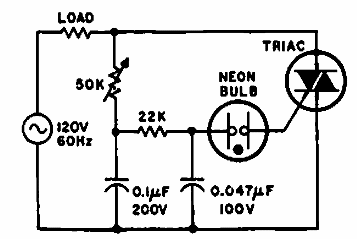

Encontrado en un manual de energía RCA de 1967, este circuito usa una lámpara de neón común para disparar un triac. El circuito es para la red de 110V.



Control de potencia con triac
Control de potencia con triac
