Filtro de paso de banda con dos operacionales (CIR20483S)

Written by: Newton C. Braga
Category: Banco de circuitos



Este circuito utiliza dos operacionales de transconductancia. Lo encontramos en la documentación de National Semiconductor de la década de 1980.

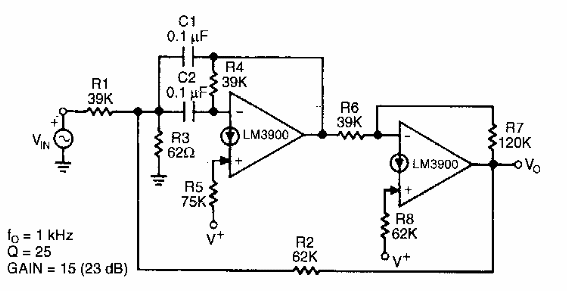

Filtro de paso de banda con dos operacionales
Filtro de paso de banda con dos operacionales
