Trampa AM para receptor de onda corta (CIR20478S)

Written by: Newton C. Braga
Category: Banco de circuitos

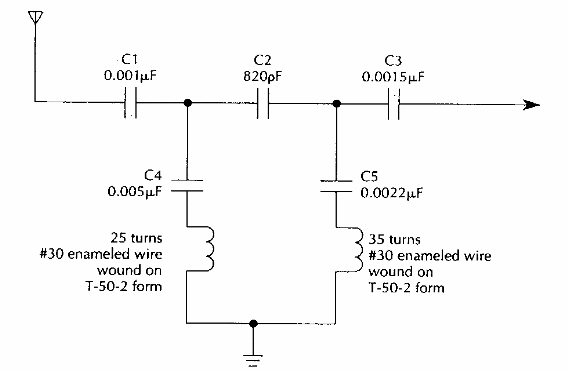

Encontrado en la documentación estadounidense de la década de 1980, este circuito rechaza las estaciones de AM potentes que pueden estar interfiriendo con un receptor de onda corta.



Trampa AM para receptor de onda corta
Trampa AM para receptor de onda corta
