Receptor de fibra óptica (CIR20472S)

Written by: Newton C. Braga
Category: Banco de circuitos

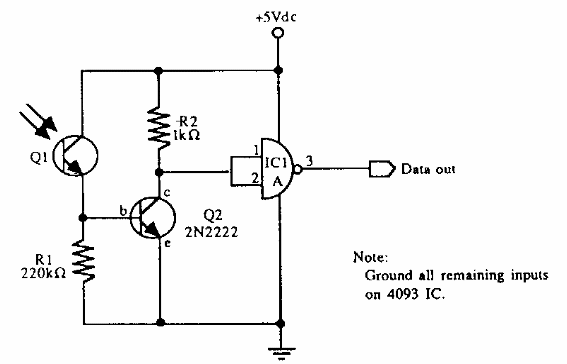

Este es el receptor del transmisor anterior. La señal consta de pulsos digitales con una salida TTL o CMOS compatible. El circuito integrado es un 4093 y el fotodiodo de cualquier tipo.



Receptor de fibra óptica
Receptor de fibra óptica
