Voltímetro AC de 3 dígitos y medio (CIR20378S)

Written by: Newton C. Braga
Category: Banco de circuitos



Los componentes utilizados en este circuito de los 90 son poco comunes en la actualidad. El circuito sirve como referencia para la eventual recuperación de un instrumento.

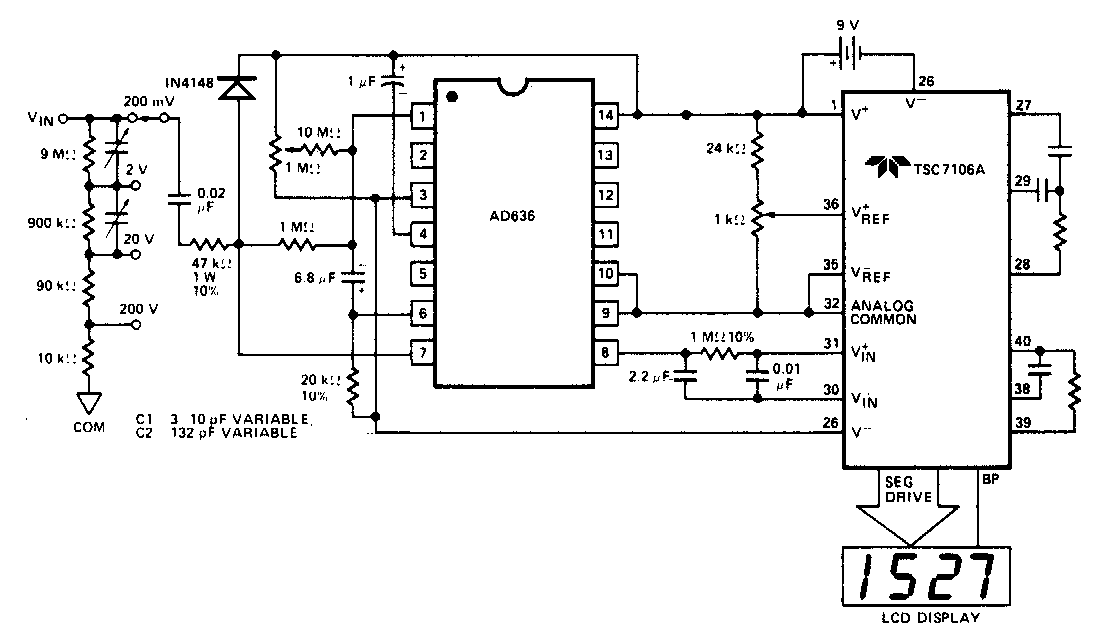

Voltímetro AC de 3 dígitos y medio
