Oscilador de 100 kHz (CIR20315S)

Written by: Newton C. Braga
Category: Banco de circuitos

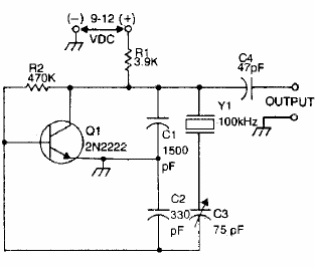

Este oscilador puede generar señales de 100 kHz o cercanas dependiendo de la frecuencia del cristal. El circuito es de documentación estadounidense antigua. Los capacitores deben ser de cerámica.



Oscilador de 100 kHz
Oscilador de 100 kHz









pcbway_012_2024
