Preamplificador para banda de 60 kHz (CIR20181S)

Written by: Newton C. Braga
Category: Banco de circuitos



Este circuito utiliza una antena de cuadro para recibir y amplificar señales de la banda de onda larga de 60 kHz. Los transistores admiten equivalentes como BF245. La alimentación se realiza en la toma central de L1 con una tensión de 9 a 15 V.



Preamplificador para banda de 60 kHz

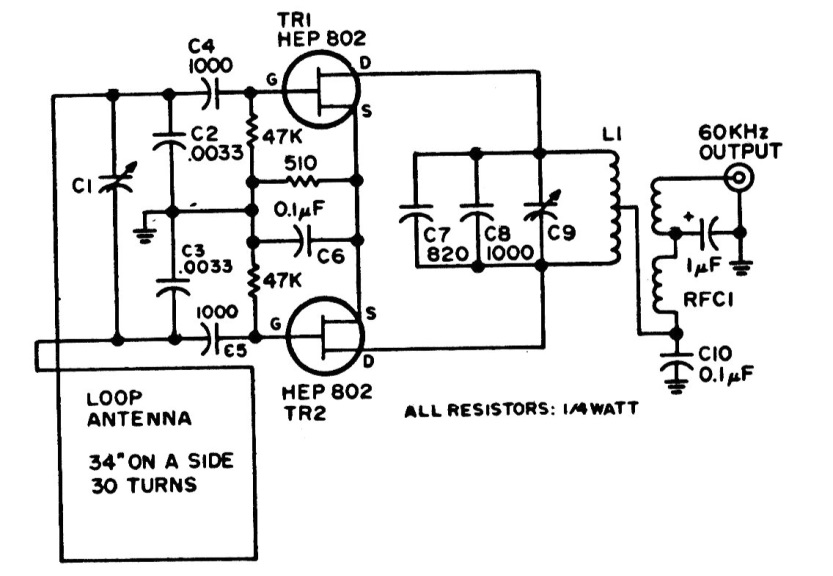

Preamplificador para banda de 60 kHz | Haga click en la imagen para ampliar |
