Reconocimiento de Tono de 1 kHz (CIR1329S)

Written by: Newton C. Braga
Category: Banco de circuitos

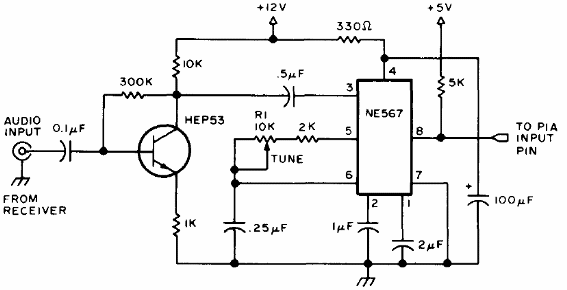

  Este circuito de una documentación para radioaficionados de 1975, fue desarrollado para reconocer un tono de llamada de 1 kHz en un sistema de radiocomunicaciones, pero puede ser usado con otras finalidades. El nivel de la señal de entrada debe ser 200 mV y la alimentación debe realizarse con las tensiones indicadas para una salida compatible con TTL.
