Control de motor universal para 3 A (CIR19622S)

Written by: Newton C. Braga
Category: Banco de circuitos



El circuito que se muestra es del manual de semiconductores de GE de 1977. Se pueden utilizar SCR equivalentes más modernos. R1 debe ser un cable.

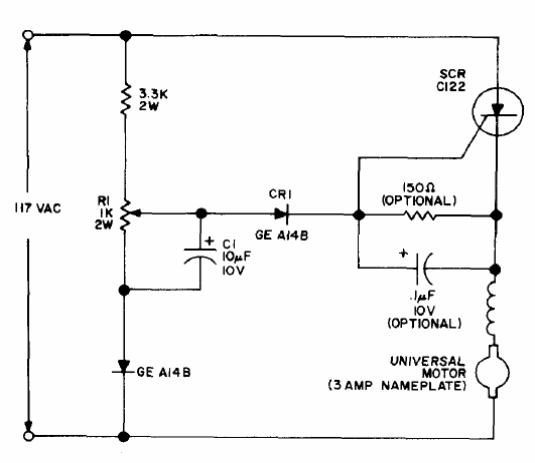

Control de motor universal para 3 A
Control de motor universal para 3 A
