Operacional con paso de entrada con FET (CIR19572S)

Written by: Newton C. Braga
Category: Banco de circuitos



El circuito presentado se encontró en el FET Databook de National Semiconductor. La configuración se aplica a otros operacionales y otros FET. La fuente de alimentación debe ser simétrica.

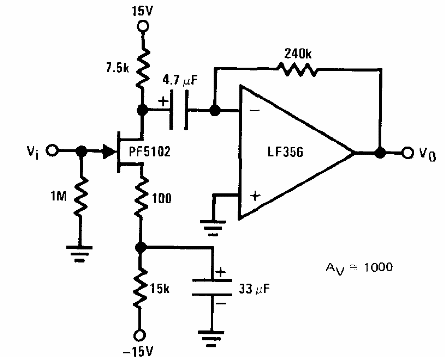

Operacional con paso de entrada con FET
Operacional con paso de entrada con FET
