Estabilizador de tensión de 15 V (CIR19243S)

Written by: Newton C. Braga
Category: Banco de circuitos



El circuito que se muestra es de documentación en inglés antiguo y se puede hacer con transistores BC548 para los de baja potencia. El 2N3055 debe montarse en un radiador de calor.

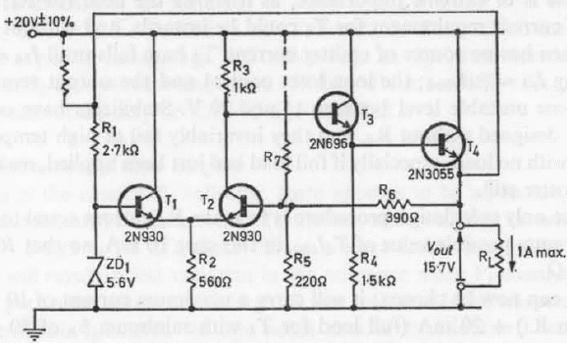

Estabilizador de tensión de 15 V
Estabilizador de tensión de 15 V
