Interruptor de tiempo (CIR19235S)

Written by: Newton C. Braga
Category: Banco de circuitos

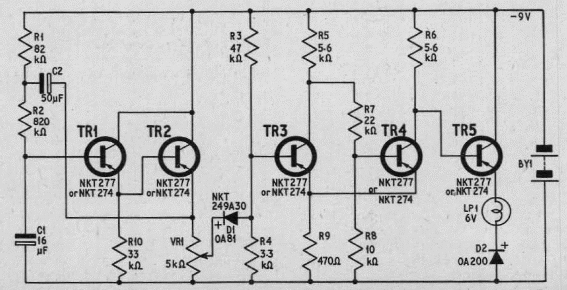

Este temporizador para intervalos de tiempo de hasta unos minutos se encontró en una publicación inglesa de 1965. Los componentes semiconductores utilizados ya no están disponibles, pero podemos ensamblarlos con transistores BC548 con pequeños cambios en los valores de algunos componentes. Los diodos pueden ser 1N4148 y en lugar de la lámpara podemos suministrar un pequeño relé. La tensión de alimentación puede estar entre 6 y 12 V dependiendo de la carga.
