Reductor 220 V a 110 V sin transformador (CIR19166S)

Written by: Newton C. Braga
Category: Banco de circuitos



Este reductor de 600 W utiliza SCR y un sistema de conmutación. El circuito es de la documentación de Motorola de 1975. Los componentes equivalentes se pueden probar para otras potencias.

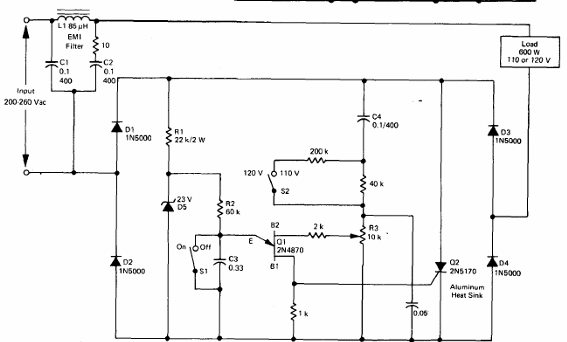

Reductor 220 V a 110 V sin transformador
Reductor 220 V a 110 V sin transformador
