Dos interruptores de potencia con Triac (CIR18353S)

Written by: Newton C. Braga
Category: Banco de circuitos

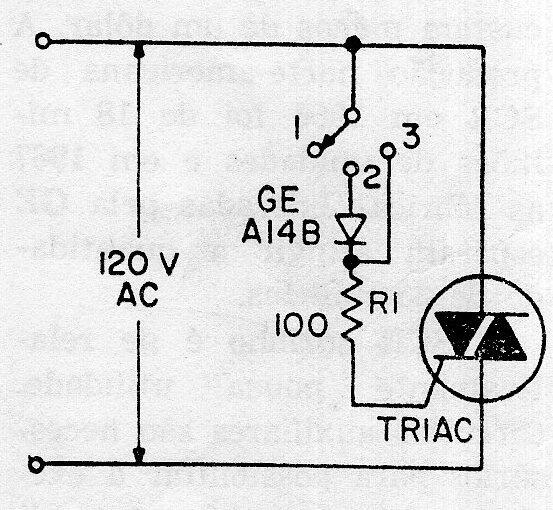

Este circuito es de una publicación de 1967, pero se puede implementar con cualquier Triac de la serie TIC y el diodo puede ser 1N4004. En la posición 1 el circuito está apagado, en 2 la carga recibe la mitad de potencia y en 3 la potencia máxima. El triac debe estar equipado con un radiador de calor y el circuito también funciona en la red de 220 V, estando conectado en serie con la carga controlada.



Dos interruptores de potencia con Triac
