Amplificador de transistor de alta impedancia (CIR18238S)

Written by: Newton C. Braga
Category: Banco de circuitos

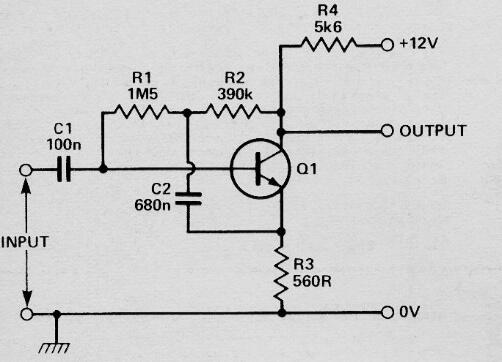

Con este circuito de 1 transistor tenemos una alta impedancia de entrada y una buena ganancia. El circuito es de una publicación de 1985 y el transistor puede ser cualquier NPN de propósito general como el BC548. El circuito funciona con señales de audio de hasta unos pocos megahertz.



Amplificador de transistor de alta impedancia
Amplificador de transistor de alta impedancia
