Micro Oscilador (CIR17743S)

Written by: Newton C. Braga
Category: Banco de circuitos

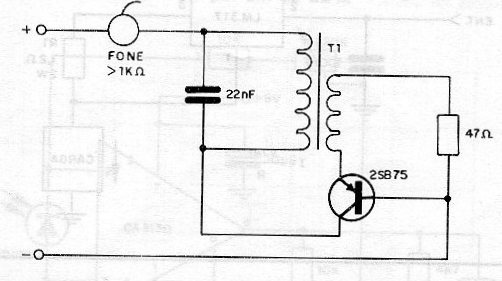

Este oscilador de audio puede funcionar con tensiones de 0,4 V, lo que lo hace ideal para funcionar con fuentes de energía experimentales o alternativas. El transformador debe obtenerse de una radio de transistores no utilizada, que consta de un transformador de controlador. Los auriculares deben ser magnéticos con alta impedancia. El valor del capacitor se obtiene experimentalmente de acuerdo con la frecuencia deseada. El transistor es de un antiguo tipo de germanio y se pueden probar equivalentes.



Micro Oscilador
Micro Oscilador
