Regulador de corriente constante (CIR17547S)

Written by: Newton C. Braga
Category: Banco de circuitos



Encontrado en una publicación técnica de la década de 1980, este circuito utiliza componentes de esa época. Se puede intentar modificar el circuito para utilizar componentes modernos. La corriente máxima es 5A.

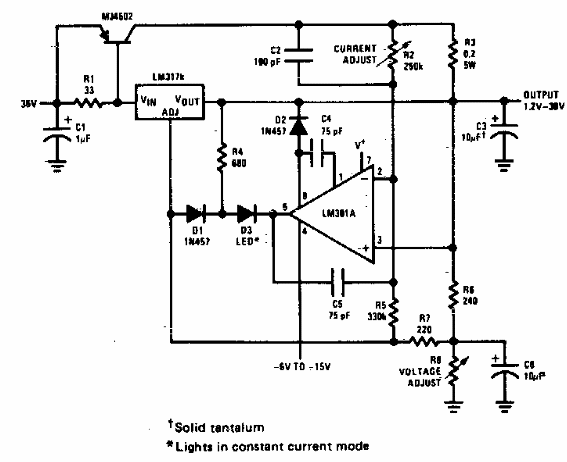

Regulador de corriente constante
Regulador de corriente constante







pcbway_012_2024
