Fotómetro logarítmico (CIR17375S)

Written by: Newton C. Braga
Category: Banco de circuitos

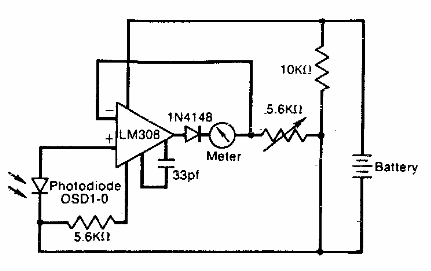

El indicador de este circuito es un miliamperímetro de 0 a 1 mA. El operacional es de los años 70, cuando se publicó el circuito. Se puede utilizar un equivalente moderno.



Fotómetro logarítmico
Fotómetro logarítmico
