Filtro pasa baja Sallen Key (CIR17256S)

Written by: Newton C. Braga
Category: Banco de circuitos



Encontrado en una documentación de los años 90, este circuito con los mismos componentes se puede aplicar a casi cualquier amplificador operacional. La fuente de alimentación debe ser simétrica.

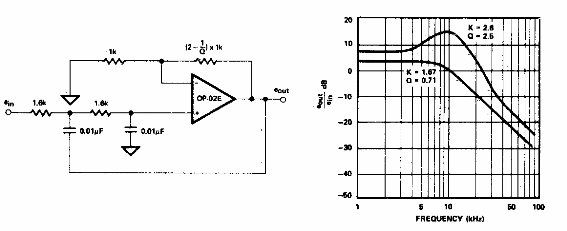

Filtro pasa baja Sallen Key
Filtro pasa baja Sallen Key
