Driver de relé (CIR17214S)

Written by: Newton C. Braga
Category: Banco de circuitos

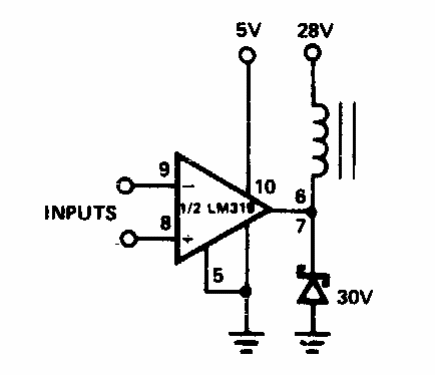

En la figura tenemos un circuito de los años 80 para la excitación de un relé de 28 V. El relé es del tipo sensible y las entradas son TTL.



Driver de relé
Driver de relé
