Controlador de elemento calefactor (CIR16556S)

Written by: Newton C. Braga
Category: Banco de circuitos

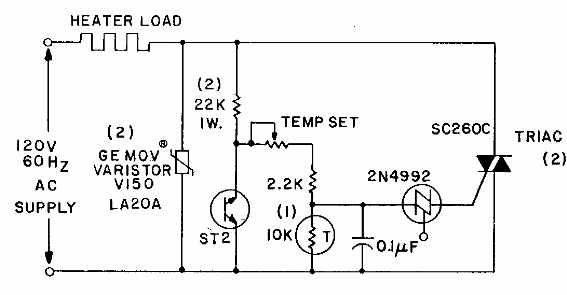

Este control de temperatura se encontró en una documentación de General Electric de los años 90. El circuito utiliza un sensor NTC de 10 k ohm como sensor. El triac debe estar de acuerdo con la carga controlada.



Controlador de elemento calefactor
Controlador de elemento calefactor
