Interruptor estático reversible (CIR16362S)

Written by: Newton C. Braga
Category: Banco de circuitos

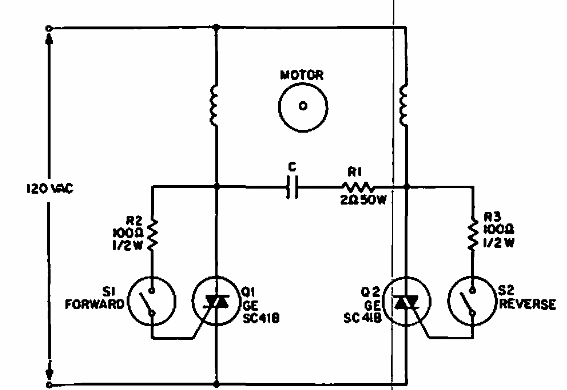

     Este circuito de control o contactor reversible se encontró en un manual de General Electric de 1967. Los triacs deben estar de acuerdo con la potencia de la carga controlada.
