Sirena CMOS de 5W (CIR16286S)

Written by: Newton C. Braga
Category: Banco de circuitos



     Esta sirena fue encontrada en una vieja Radio Electronics. El MOSFET admite equivalentes y debe estar equipado con un disipador de calor. Se pueden hacer cambios en los componentes para modificar el sonido.

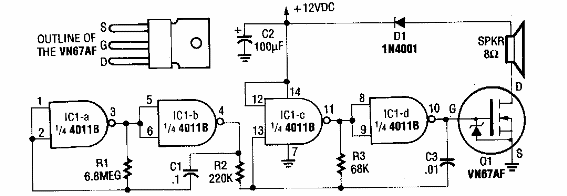

Sirena CMOS de 5W
Sirena CMOS de 5W
