Radio AM ZN414 (CIR16230S)

Written by: Newton C. Braga
Category: Banco de circuitos



     El circuito integrado ZN414 consiste en una radio completa de la década de 1980. Este circuito receptor único se encontró en una Popular Electronics de la década de 1980. La bobina tiene 80 vueltas de cable 28 en varilla y ferrita.

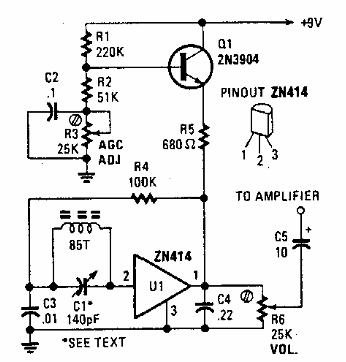

Radio AM ZN414
Radio AM ZN414
