Generador de neón de 500 Hz (CIR16162S)

Written by: Newton C. Braga
Category: Banco de circuitos



     Este circuito genera señales rectangulares a una frecuencia de 500 Hz. El circuito es de la antigua documentación estadounidense. Las lámparas de neón son de tipos comunes.

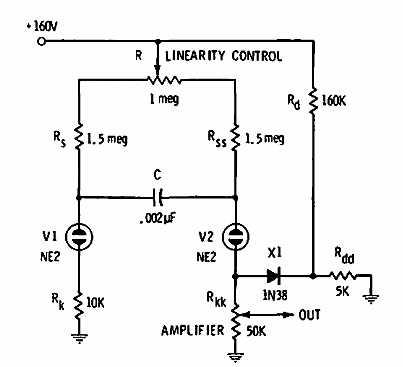

Generador de neón de 500 Hz
