Amplificador de 6 W (CIR16138S)

Written by: Newton C. Braga
Category: Banco de circuitos



     Utilizando transistores en ese momento, este circuito se encontró en la documentación de la década de 1970. Los transistores admiten equivalentes modernos para corrientes de al menos 2 A en el caso de transistores de salida.

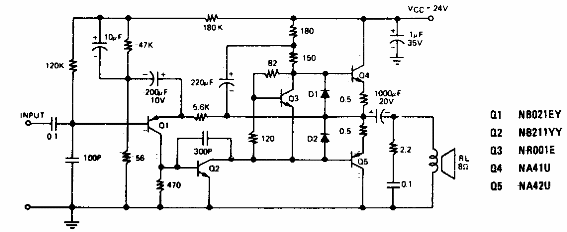

Amplificador de 6 W
Amplificador de 6 W
