Convertidor AD logarítmico de 3 décadas (CIR16108S)

Written by: Newton C. Braga
Category: Banco de circuitos



     Este circuito se encontró en una documentación estadounidense de los años 70. El convertidor puede ser de cualquier tipo y la fuente de alimentación para los operacionales debe ser simétrica.

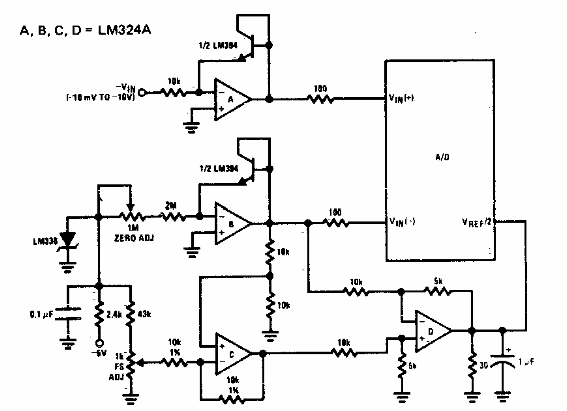

Convertidor AD logarítmico de 3 décadas
