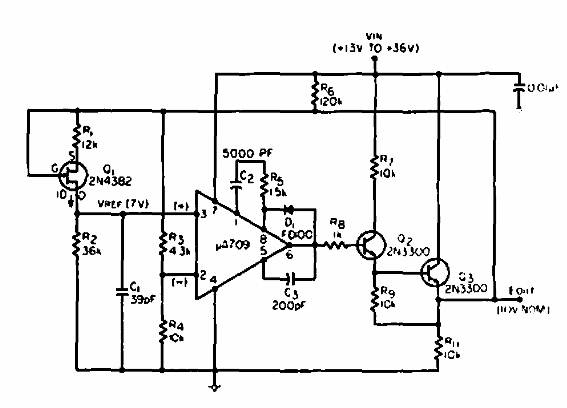

Fuente de corriente constante con FET de referencia (CIR15880S)

Written by: Newton C. Braga
Category: Banco de circuitos



    Este circuito se obtuvo en un EEE de 1967. Los transistores y los circuitos integrados se pueden reemplazar por equivalentes modernos. El FET es para propósito general.



Fuente de corriente constante con FET de referencia
