Temporizador secuencial triple (CIR15745S)

Written by: Newton C. Braga
Category: Banco de circuitos

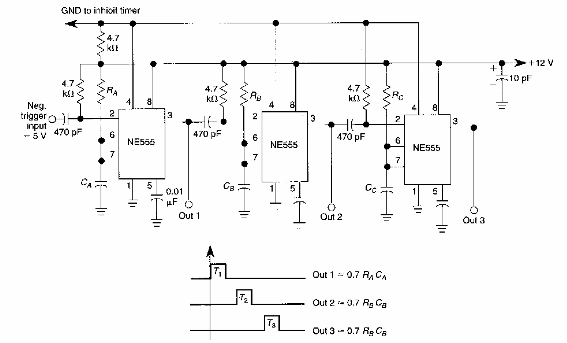

     Encontrado en documentación estadounidense de los años 90, este circuito proporciona tres tiempos dados por los gráficos. El circuito puede disparar diferentes tipos de cargas.



Temporizador secuencial triple
