Muestreo y retención (CIR15669S)

Written by: Newton C. Braga
Category: Banco de circuitos

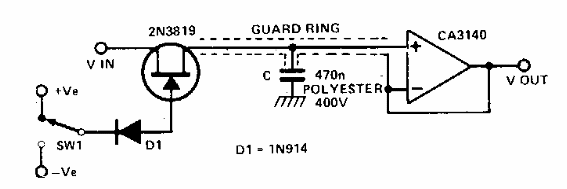

     Encontrado en la documentación en inglés de la década de 1990, este circuito puede emplear componentes equivalentes. El capacitor debe ser del tipo de baja fuga. El circuito puede funcionar como un shield.



Muestreo y retención
Muestreo y retención
