Oscilador variable (CIR15582S)

Written by: Newton C. Braga
Category: Banco de circuitos

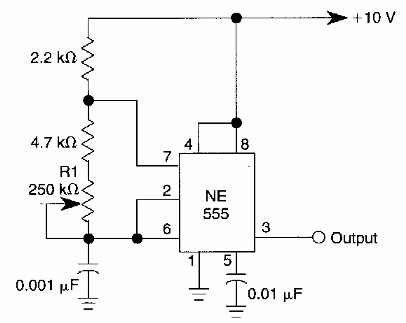

    Esta configuración tradicional se tomó de un folleto técnico estadounidense de los años 90. El circuito genera señales de 2800 Hz a 80 kHz con los valores de los componentes utilizados.



Oscilador variable
Oscilador variable
