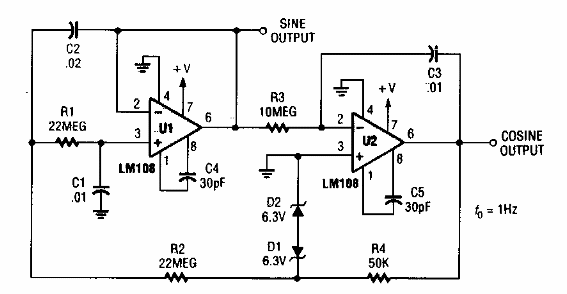

Oscilador sinusoidal de 1 Hz (CIR15554S)

Written by: Newton C. Braga
Category: Banco de circuitos



     Encontrado en Popular Electronics desde los años 90, este circuito genera una señal de muy baja frecuencia determinada por C1 y C2. Estos componentes se pueden cambiar para obtener otras frecuencias. Los operacionales admiten equivalentes.
