Relé de estado sólido (CIR15522S)

Written by: Newton C. Braga
Category: Banco de circuitos

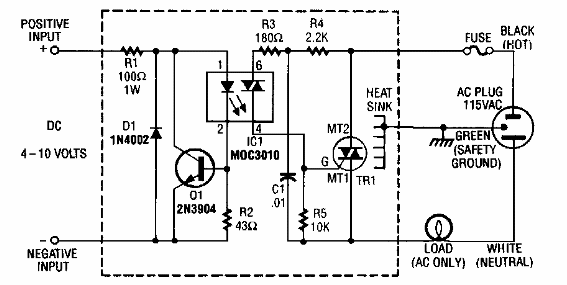

     Encontrado en una Radio Electronics de los años 90, este shield puede controlar cargas de alta tensión en la red eléctrica. El aislamiento está garantizado por el uso de un acoplador óptico.



Relé de estado sólido
Relé de estado sólido
