Lector de cinta perforada (CIR15392S)

Written by: Newton C. Braga
Category: Banco de circuitos

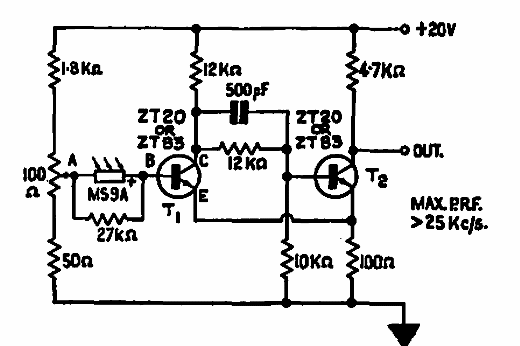

     Este circuito de Ferranti, en una publicación de 1967, está destinado a leer cintas perforadas. El circuito utiliza transistores de la época que pueden ser reemplazados por equivalentes modernos.



Lector de cinta perforada
Lector de cinta perforada
