Rectificador sin diodo (CIR15367S)

Written by: Newton C. Braga
Category: Banco de circuitos

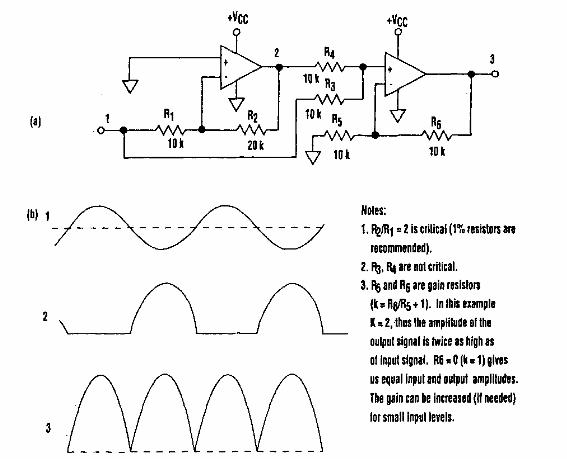

     Encontrado en una Electronic Design de los años 90, este circuito rectifica las señales sinusoidales que proporcionan salida como se muestra en los gráficos. El circuito se aplica a cualquier operacional.



Rectificador sin diodo
Rectificador sin diodo
