Millivoltímetro DC (CIR15333S)

Written by: Newton C. Braga
Category: Banco de circuitos

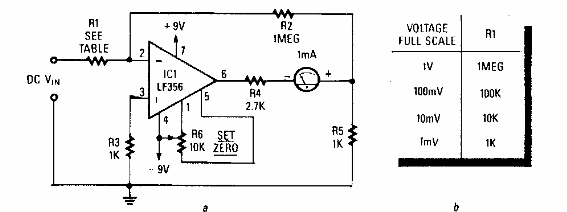

     Este circuito se obtuvo en una Radio Electronics desde los años 90. El valor de R1 determina la escala de acuerdo con la tabla al lado del diagrama. La alimentación debe ser simétrica.



Millivoltímetro DC
Millivoltímetro DC
