Oscilador de 1,68 GHz (CIR15182S)

Written by: Newton C. Braga
Category: Banco de circuitos



     Encontrado en un manual RCA de los años 70, este circuito utiliza un transistor de la época para un oscilador en la banda L de UHF. No se dieron detalles del circuito resonante, que es crítico.

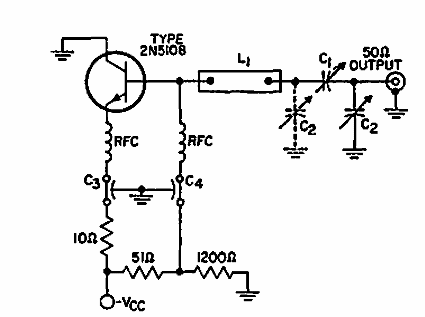

Oscilador de 1,68 GHz
Oscilador de 1,68 GHz
