Generador de rampa con el 555 (CIR14919S)

Written by: Newton C. Braga
Category: Banco de circuitos

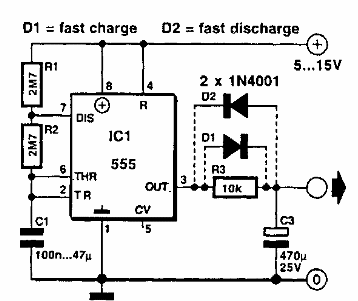

     Encontramos este circuito en una Elektor de los 90. La frecuencia viene dada por el capacitor C1. El circuito oscila a 0.1 Hz y se usa como astable.



Generador de rampa con el 555
Generador de rampa con el 555
