Filtro variable pasa altas (CIR14893S)

Written by: Newton C. Braga
Category: Banco de circuitos

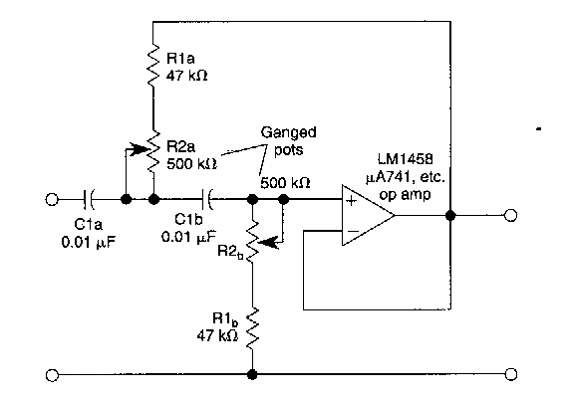

    Encontrado en un folleto estadounidense de los años 90, este circuito se puede ajustar para dejar frecuencias superiores de 30 a 300 Hz. El amplificador operacional puede ser el 741 además de otros.



Filtro variable pasa altas
Filtro variable pasa altas
