Antena FM sintonizable (CIR14778S)

Written by: Newton C. Braga
Category: Banco de circuitos

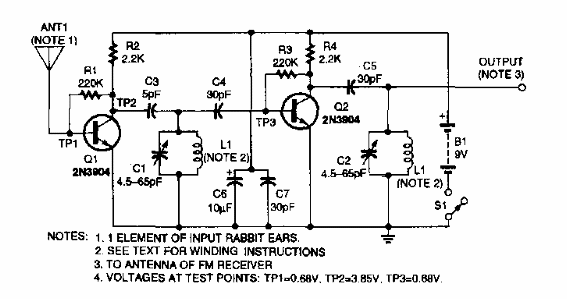

     Encontramos este amplificador de antena o circuito de refuerzo en una Electronics Now de los años 90. El circuito se puede implementar con transistores equivalentes como el BF494.



Antena FM sintonizable
Antena FM sintonizable
