Receptor óptico lineal para 50 kHz (CIR14744S)

Written by: Newton C. Braga
Category: Banco de circuitos



     Este circuito se encontró en la documentación de General Electric de la década de 1980. El circuito está diseñado para recibir señales ópticas moduladas a 50 kHz. Los componentes admiten equivalentes modernos.

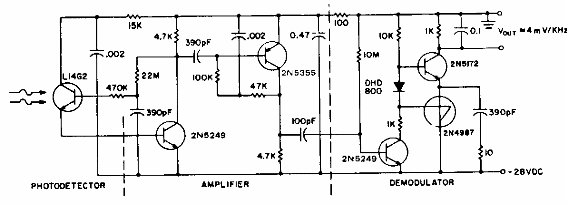

Receptor óptico lineal para 50 kHz
Receptor óptico lineal para 50 kHz
