Control de rango limitado (CIR14569S)

Written by: Newton C. Braga
Category: Banco de circuitos

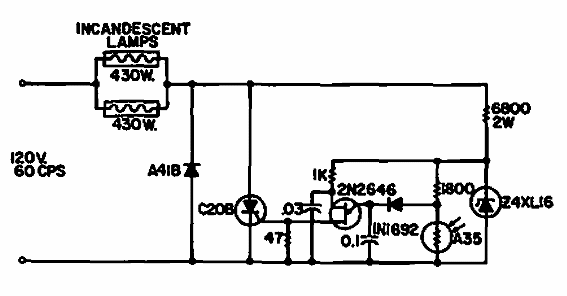

     Sugerido por la documentación de General Electric en 1965, este circuito controla la corriente a una carga de la mitad a la potencia máxima. El circuito es para cargas de hasta 900 W con los componentes utilizados.
