Búfer de video (CIR14526S)

Written by: Newton C. Braga
Category: Banco de circuitos



    Este circuito se encontró en un Electronics Now de los años 90. Está destinado a amplificar señales de video compuesto, como las que se usan en la televisión analógica.

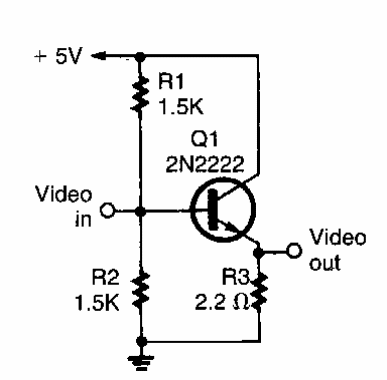

Búfer de video
Búfer de video
