Control para ferrocarriles en miniatura (CIR14380S)

Written by: Newton C. Braga
Category: Banco de circuitos

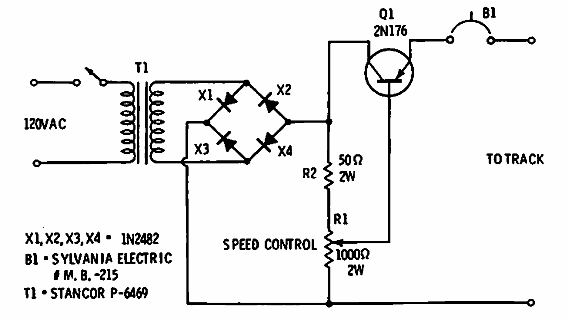

     Encontrado en una publicación estadounidense de 1968, este circuito puede diseñarse en base a un TIP42 que debe montarse en un disipador de calor. El transformador es de 25 V con una corriente de 3 a 4 A.
