Intermitente de xenón (CIR14242S)

Written by: Newton C. Braga
Category: Banco de circuitos

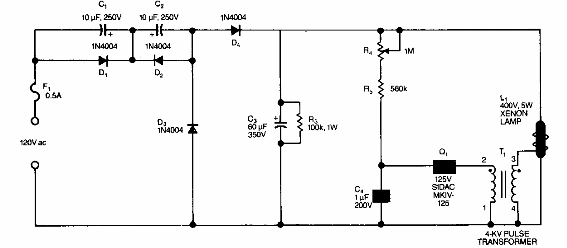

     Esta versión de intermitente de xenón para la red eléctrica es de una EDN de los 80. El circuito utiliza un doblador y un transformador de pulso para encender la lámpara. C1 determina la intensidad de los pulsos.



Intermitente de xenón
Intermitente de xenón
