Cerca electrica (CIR14234S)

Written by: Newton C. Braga
Category: Banco de circuitos

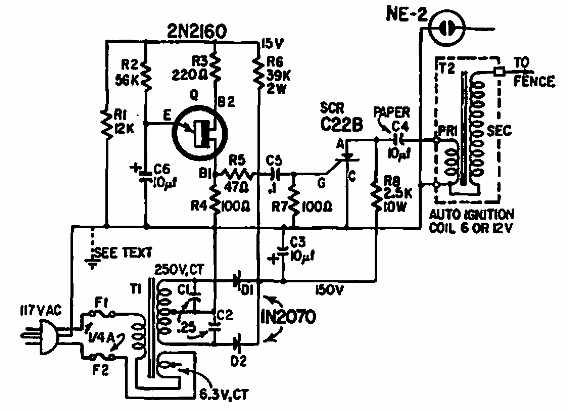

    Este circuito se obtuvo de una Radio Electrónica de 1965. Los semiconductores utilizados admiten equivalentes modernos. La bobina de alta tensión es una bobina de encendido de automóvil.



Cerca electrica
Cerca electrica
